Infrared photocell interface, Loop detector interface and IC system
LED light are used inside for indication the position of the beam.
-30°C - +75°C

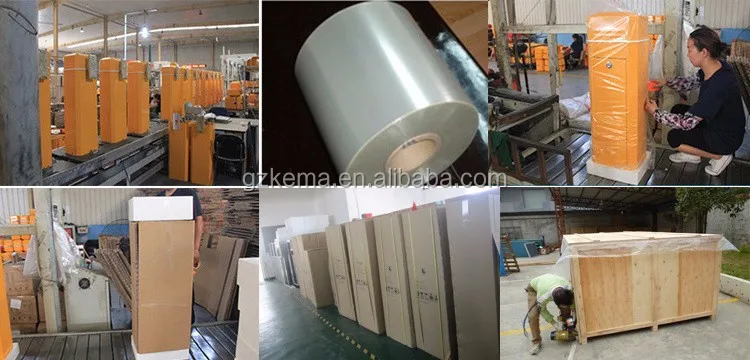

Packaging & Delivery
Factory standard package(First pack cartons then reload the wooden case)
Boom barrier road gate hotel parking barrier gate from COMA barrier gate
Barrier Gate Description
1. Straight arm , folding arm , fence arm optional 2. The fastest landing gear speed 0.6S ; 1S, 3S , 6S Customized 3. Use of intelligent, precision manufacturing, advanced waterproof structure and spraying process. 4. Unique design of barrier gate's core 5. With intelligent self-test, open priority protection, preventing damage to vehicles protection, blocking protection, self-locking function limit position.
Blue / Orange / Gray / Yellow
0.6s,1s,1.5s, 3s, 6s. Customized

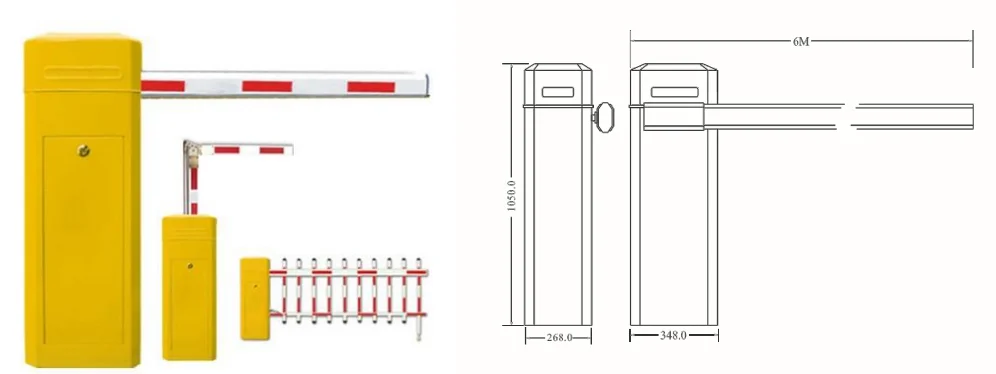

Straight Arm: Max 6 meters , aluminum alloy
Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy
Folding Arm: 90 or 180 degree folding arm, max 5 meters, aluminum alloy
Spring And Bearing
Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance
less than 50 meters
Suitable for indoor as well as outdoor parking area at airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, etc. It canalso be customized to beused together with any auto-pay ticketing parking access control system
1. Wireless remote control 2. The key of the cabinet door 3. Barrier controller 4. The retaining bar clamp 5. Secure the pressure plate 6. Fixing screws 7. Barrier arms
Optional function a) Anti-collision b) Traffic light prompt c) Voice prompts

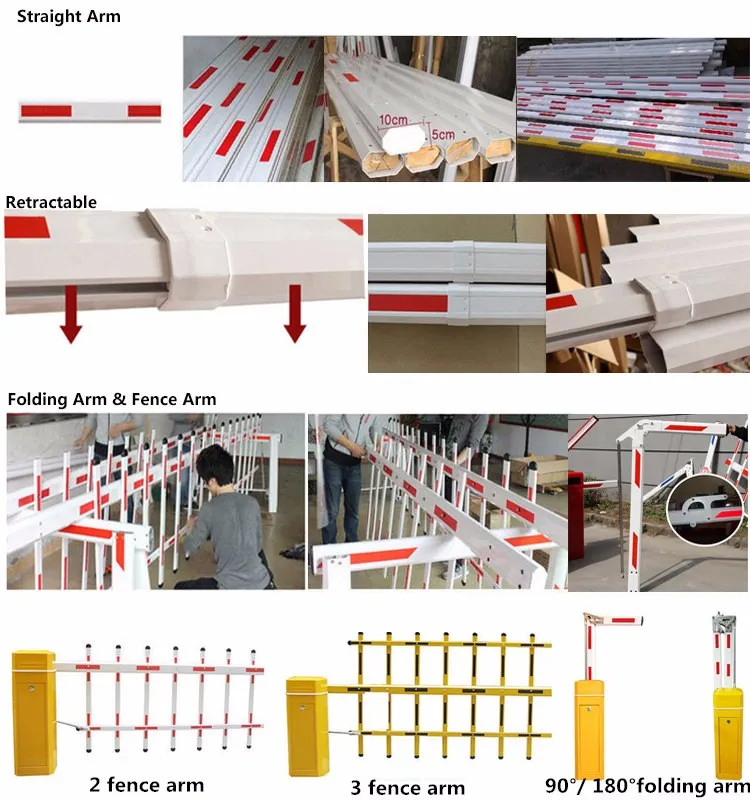

Optional Arm Type:
a) Straight arm- suitable for broad area without height limitation
b) Folding arm- suitable for the place with height limitation such as underground parking lot
c) Grid arm- suitable for the place with the ban of animals.
1. Straight up to 6M in general, can be customized.
2. If the straight arm is too long, easy to bend and deformation during transport, and air express requirements of arm length can not exceed 3M, telescopic rod generally consists of two sections, each section of the 3M, the maximum can be extended to 5.3M. 3. The maximum length of the fence typ is 4.5M 4. Folding type up to 6M, in general use of underground garage, can be customized.
Our design had consider difference countries,market,project. Standard barrier core had widely not only for Tropical countries (like Africa, Southeast Asia,Indonesia etc ) , but also for cold countries (like Mongolia, Russia etc ).
AC motor Ac motor is maintenance free , built in intelligent fan cool the motor during heavy usage. Cabinet Made with 1.5~2.0mm cold rolled steel sheet for extra durability to support longer arm. Cabinet body is coated with epaxy paint for weatherprof protection. Arm Swing out arm will swing out when hit directly by vehicle to avoid further damage on the vehicle. Arm Auto Reverse Built in smart collision detection technology allows arm to auto reverse when hit with an obstacle during closing to prevent further scratches & dents on the vehicle. Optional rubber lining to protect the vehicle from further damages.
